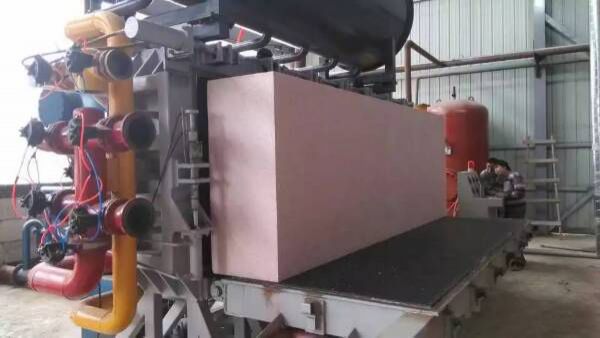

block molding machine Generation IV

Specification

** Automatical conveying device,automatical weighing and printing device are optional

Feature

1.EPS Block Molding Machine adopts PLC full computer touch screen displayer which can realize a full automatic cycle operation of mould opening, mould closing, material feeding, heating, heat preserving, vacuum cooling, demoulding and extruding-out of finished products.
2.The machine is welded by high-quality profile steel with aging heating treatment which can bring a high strength, non-deformation and high resistance to the expansive force from high-density products.
3. The machine is integrated with overseas advanced and special penetrating and heating techniques for shaping , and a high pressure suction fan for material feeding, cooling with a strong penetrability, favorable-adhesivity, low consumption of steam, high speed of shaping and low water content so as to ensure the uniformity of inside and outside of the product.
4. There are ventilation panel inside the block mold respectively at the 6 directions of its top, bottom, left, right, front and back, which will increase the airflow  instantaneously and strengthen penetrating power. (We have got patent on a this technology)

√ Why you need molding machine with vaccum barrel ?

Its design can make heating process well-distributed,full beads expansion,little space among beads,low moisture for beads,sound panel shape,it full meets the requirement of the exterior wall panels.Whileas,the low quality molding machine can not control the density of panels,different density for different part of one panel,bog space among beads,not strongly combines,big moisture.
And The vaccum molding machine take 7-8 mins to make one panel,without vacum barrel,it takes 15 mins for one panel.
