film wrapping package machine

Item No.: CO85543557

Specification

Model No.	S2	S4	S6	S8	S10	S12
Max package cross-section	200×200	400×400	600×600	800x800	1000x1000	1200x1200
Film size	Thickness 0.02-0.1mm, width 160mm-300 mm
Packing materials	PE film, non-woven garment , composite paper
Overlapping size	2/3—1/2
Packing length	≥1m with no limited max length
capacity	5-8m/minute
Ring speed	60—300circles/minutes adjustable
Conveyor length	customized
Control system	Human machine interface/PLC programming/frequency control
Specification customized	available

Feature

Delta electronics PLC programming control system and touch screen device, the wrapping circles can be adjustable.

Input the data of packing products on Delta screen touch display,computer can automatically set the film wrapping circles and length.

Delta frequency transformer can adjust the conveyor speed.

Photo electricity sensor for positioning, stop and alarm.it is automatical work.

Film overlapping can be adjusted by Delta frequency transformer.

Labeling function for packages can be stronger film wrapping and brand display.

Application

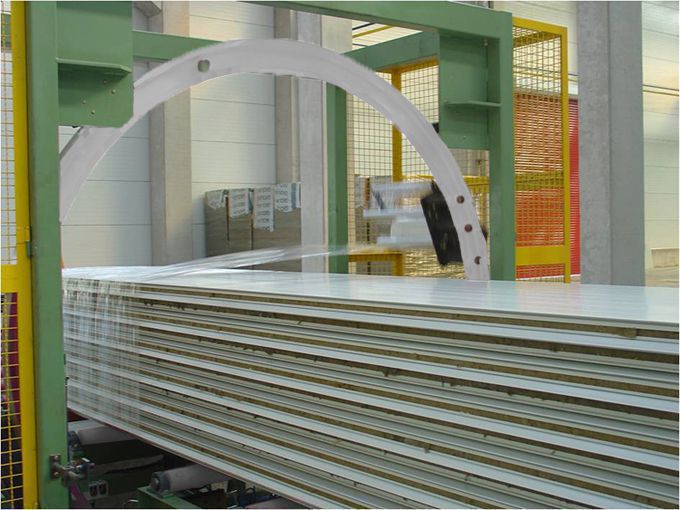

Horizontal film wrapping machine is for various foam panels ,sandwich panels and also other panels,pipes,strip,wire rod package etc. The packed products can be corrosion resistant, good sealing, easier storage and transportation.
