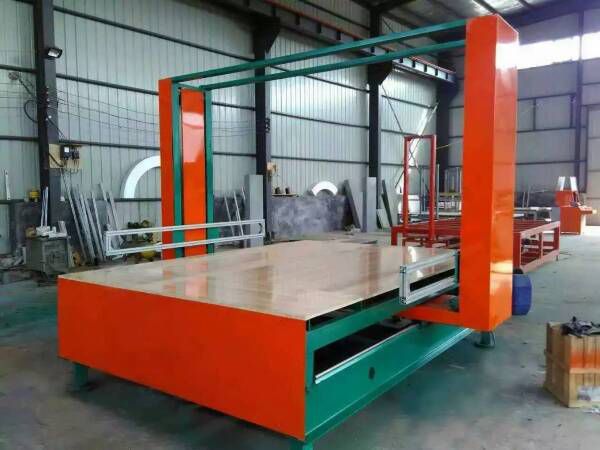

eps profile cuting machine

Item No.: CO193741316

Specification

Item	Unit	PSQ3000	Other Model
Cutting length	mm	3000	Custom making is available
Cutting width	mm	2500
Cutting height	mm	1500
Cutting shape	Axes(x,y)	2
Cutting speed	M/min	0.5-1
Power	kw	7.3
Voltage	V/Hz	220/50
Machine size	mm	3000x2400x2500
Overall weight	kg	900

Feature

The machine is used for contour cutting eps products,such as eps architectural decoration,patterns etc. It works by computer via CAD software which signal X&Y axes synchronously for eps cutting products. You need design the pattern via AUTO CAD software, and X axis is for horizontal movement, Y axis is for vertical movement.

The machine structure is by rectangular pipe,sliding system is by linear module,both design can make the motion stable and cutting precisely.

The step motor enjoys with stable motion and free speed regulation,it is good for special shape cutting which requires variable speed.

Cutting frame can take 20 pcs hot wires which can max cut 20 pcs similar pattern and characters.

Machine functions with stroke protection,power cut memory,backlash compensation etc.
