arch foam coating machine

Item No.: CO20032868

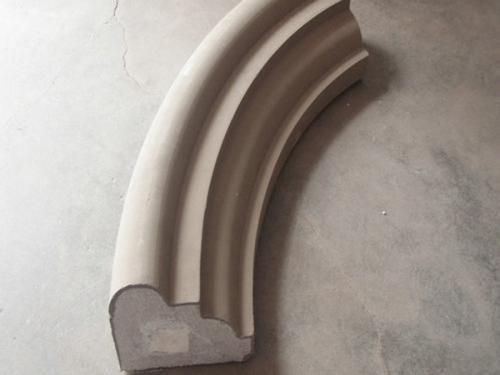

Eps profile coating machine are working on coating mortar on the surface of eps foam profiles.The motor motions the chain to drive the eps profiles on the chain thru the molding in the middle which is filled with mortar. Bigger coating width requires stronger chain drive. Molding can be adjusted a little bit by ball type screw,it can save time than other type design.

1. The position of panels on storage tank are controlled by special round screw with lateral rolling technology. It is good for the problem solving of the uneven thickness of mortar layer.You can adjust the screw to solve the problem.The thickness deviation can be within 0.5mm.

2. The panels of mortar storage tank can be movable horizontally which is easier for the exchange of the panels. The exchange needs only 3 mins time, same machines from other factories may need 30 mins.

3. The position holding bar and guiding bar can make the eps profiles enter smoothly.

4. Sectional design of the mortar storage tank can be variable with different size of eps profiles.

5. The sharp gear chain (single row gear, double row gears, wide row gear type are available) design can guarantee the movement consistency.it solves the skid problem when it drive big size eps profiles.

6. Our machines are equipped with Delixi brand electronics.

7. Max application of eps profiles are 630mm*800mm、630mm*1230mm、900mm*1230mm、1230mm*1300mm. Custom size making are also available.

Machine Tips:

Thickness of coating material is as much as space between model moulds and the surface of the foam produces which had been cut. For example, if the space between your model foam which had been cut and model mold which belongs this produce is 2 mm you should coat the surface of your produces with 2 mm mortar.

These blanks should be same for every produce for following costs and manufacturing in good quality produce always. So, it is very important the quality of foam coating machine you to buy. You should have a machine which has iron body, power and which never shiver, for manufacturing produce in good quality always and for preventing hidden manufacturing costs.
